SPARK PLUG CONSTRUCTION [ZY, Z6]


id0118001004a0

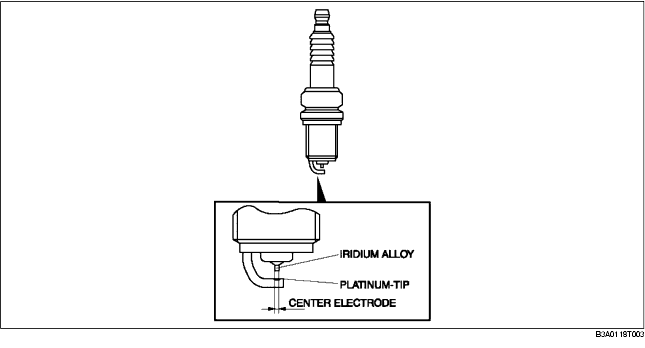

Structure

• An iridium spark plug with excellent durability and firing performance has been adopted.

• The extremely thin, center electrode has a diameter of 0.7 mm {0.028 in} and is made of iridium alloy.

• Durability has been improved by the use of a platinum-tipped grounding electrode.

• Based on the thinner electrode (center electrode), electric discharge has been reduced and ignition has been improved, resulting in stable ignition performance under any driving conditions.
