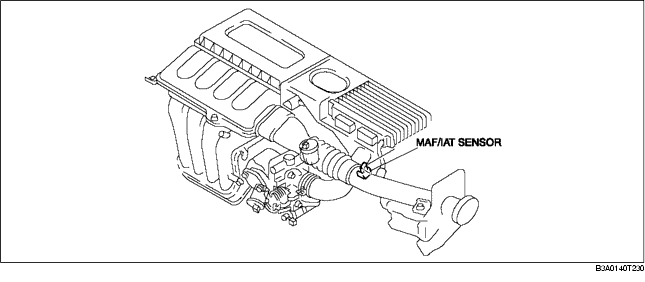

• Installed on the air hose.

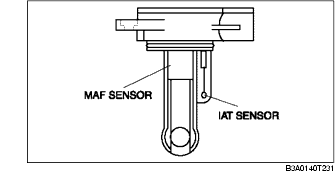

• Built into the MAF sensor.
• A thermistor type is used and the resistance changes according to the IAT.

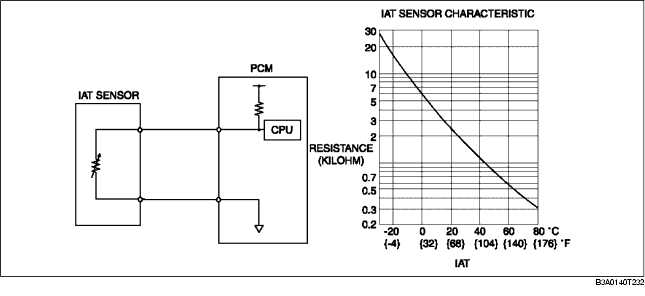

• As shown in the characteristics graph, when the IAT is high, the resistance is low, and when the IAT is low, the resistance is high.
