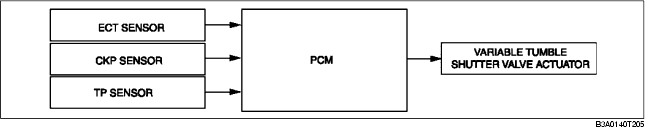

VARIABLE TUMBLE CONTROL BLOCK DIAGRAM [ZY, Z6]


id0140a0176400

• The PCM determines the engine operation conditions based on input signals and sends an operation signal to the variable tumble shutter valve actuator.
