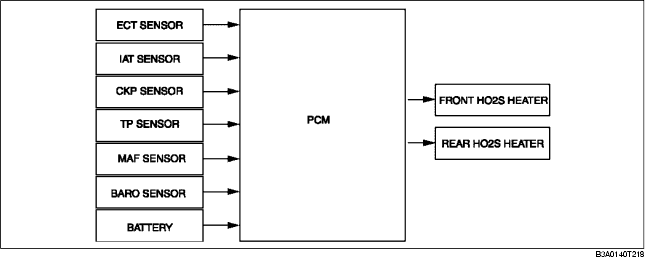

HEATED OXYGEN SENSOR (HO2S) HEATER CONTROL BLOCK DIAGRAM [ZY, Z6]


id0140a0180100

• The PCM determines the engine operation conditions based on input signals and sends an operation signal to the front or rear HO2S.
