KNOCK SENSOR (KS) INSPECTION [ZY, Z6]

id0140a0802800

Note

•  Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart. (See HOW TO USE THIS MANUAL.)

1.  Disconnect the KS connector.

2.  Measure the resistance between KS terminal A and body GND.

•  If not within the specification, replace the KS. (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [ZY, Z6].)

•  If the monitor item condition/specification (reference) is not within the specification, even though there is no malfunction, perform the “Circuit Open/Short Inspection”.

Circuit Open/Short Inspection

1.  Remove the PCM connector cover.

2.  Disconnect the PCM connector. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)

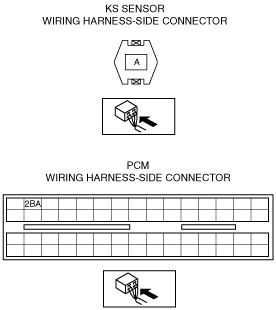

3.  Inspect the following wiring harness for open or short circuit (continuity check).

am3zzw00009365

Open circuit

•  If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

―  Knock sensor terminal A and PCM terminal 2BA

Short circuit

•  If there is continuity, there is a short circuit. Repair or replace the wiring harness.

―  Knock sensor terminal A and body GND

―  Knock sensor terminal A and power supply
