NEUTRAL SWITCH CONSTRUCTION/OPERATION [LF, L3]


id0140a6176900

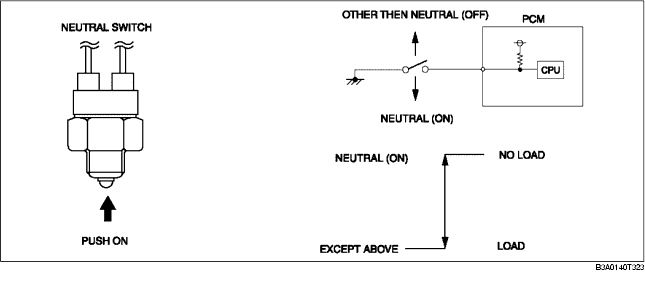

• When the shift lever is in the neutral position, the contact closes (ON) and the PCM detects a voltage of 0 V. When the shift lever is not in the neutral position, the contact opens (OFF) and the PCM detects a voltage of 12 V.
