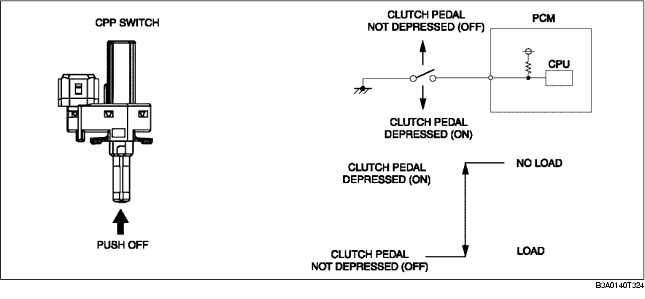

CLUTCH PEDAL POSITION (CPP) SWITCH CONSTRUCTION/OPERATION [LF, L3]

• When the clutch pedal is depressed, the contact closes (ON) and the PCM detects a voltage of 0 V. When the clutch pedal is not depressed, the contact opens (OFF) the PCM detects a voltage of 12 V.
