FRONT WHEEL ALIGNMENT

id021100800200

Specification (Unloaded)*1

Item

Fuel gauge indication

Empty

1/4

1/2

3/4

Full

Maximum steering angle
[Tolerance ±3°]
Inner
39°48'
Outer
32°48'
Total toe-in
Tire
[Tolerance ±4 {±0.16}]
(mm {in})
2 {0.08}
Rim inner
1±3 {0.04±0.12}
(degree)
0°11'±0°22'
Caster angle*2 (Reference value)
[Tolerance ±1°]
2°55'
2°57'
3°00'
3°02'
3°04'
Camber angle*2 (Reference value)
[Tolerance ±1°]
-0°39'
-0°40'
-0°41'
Steering axis inclination (Reference value)
13°59'
14°00'
14°01'
14°02'

*1 :
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2 :
Difference between left and right must not exceed 1°30' .
Note

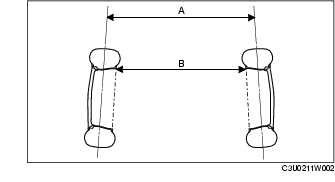

Total toe-in measuring position
• Tire: A indicated in the figure (between the center of the tires)

• Rim inner: B indicated in the figure (between the inner side of the rims)

Camber and Caster Angle Adjustment

1. Remove the shock absorber upper nuts.

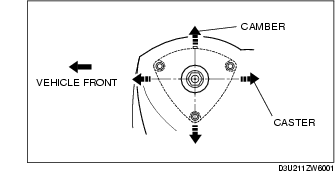

2. Move the shock absorber and coil spring to adjust the camber and caster angle.

Note
• Moving the shock absorber and coil spring to the right and left allows camber adjustment, and moving it forward and backward allows caster adjustment.
• Available camber adjustment range: ±10'
• Available caster adjustment range: ±10'

3. Install the shock absorber upper nuts.

4. Reinspect the alignment to make sure that it is within the specification.

Steering Angle Adjustment

1. Loosen the locknut of the tie-rod end.

2. Remove the rack boot clamp.

3. Rotate the tie rod and adjust the steering angle.

Note
• The travel distance of the right and left tie rods should be the same.

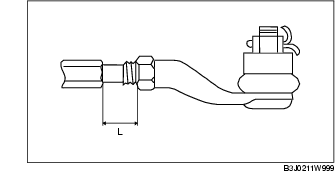

4. Rotate the tie rod and adjust so that the length L shown in the figure is within the specification.

Standard
13-31 mm {0.52-1.22 in}

5. Tighten the locknut of the tie-rod end.

Tightening torque
78.6-108.0 N·m {8.02-11.01 kgf·m, 57.98-79.65 ft·lbf}

6. Correct the rack boot twists.

7. Install and fix the rack boot clamp.

8. After adjusting the steering angle, always inspect and adjust the toe angle.

Total Toe-in Adjustment

1. Loosen the locknut of the tie-rod end.

2. Remove the rack boot clamp.

3. Adjust the total toe-in by rotating each tie rod (left and right) in the opposite directions by the same amount respectively.

Note
• Toe angle changes by approx. 6mm {0.2 in} per one rotation of the tie rod for one wheel.
• Each tie rod has a right-hand thread. When increasing the toe-in angle, rotate the right tie rod toward the front of the vehicle and rotate the left tie rod toward the rear of the vehicle by the same amount.

4. Tighten the locknut of the tie-rod end.

Tightening torque
78.6-108.0 N·m {8.02-11.01 kgf·m, 57.98-79.65 ft·lbf}

5. Verify that the rack boot does not have any twisting and install the rack boot clamp.
