REAR SHOCK ABSORBER REMOVAL/INSTALLATION

id021400801300

1.  Remove in the order indicated in the table.

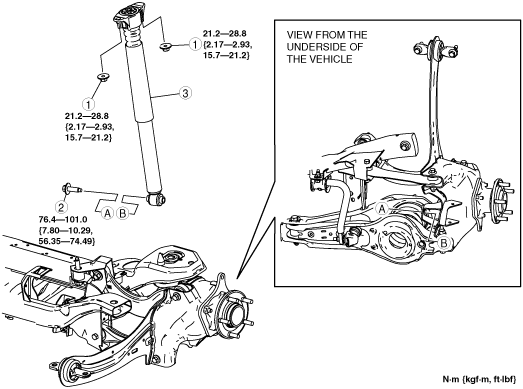

am3zzw00012934

1	Rear shock absorber upper nut
2	Rear shock absorber under bolt
3	Rear shock absorber

2.  Install in the reverse order of removal.
