FRONT WHEEL HUB BOLT REPLACEMENT [LOCKNUT TYPE]


id0311008002a1

1. Remove the brake calliper component and disc plate.

2. Remove the wheel hub bolt using the SST as shown in the figure.

Note
• When removing the wheel hub bolts, perform the work between range A shown in the figure to assure a space for the bolt removal.

3. Place a new wheel hub bolt in the wheel hub.

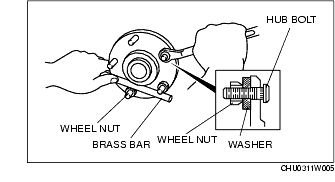

4. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.
