REAR WHEEL HUB BOLT REPLACEMENT [DISC BRAKE TYPE]


id0312008002a0

1. Remove the brake calliper component and disc plate.

2. Remove the wheel hub bolt using the SST as shown in the figure.

3. Place a new wheel hub bolt in the wheel hub.

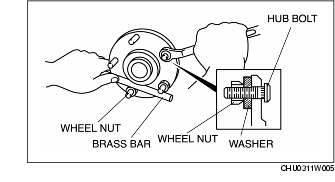

4. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.
