STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT WIRING HARNESS BETWEEN ABS HU/CM AND DLC-2 FOR CONTINUITY AND SHORT CIRCUIT
• Perform DTC inspection.
• Is any error message displayed regarding communication between ABS HU/CM and the WDS or equivalent?
|
Yes
|
If the communication error message is displayed even after inspecting according to the procedures displayed in the WDS or equivalent, go to Step 4.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT FOR DTCs IN ABS HU/CM
• Have DTCs been stored in memory?
|
Yes
|
Perform the applicable DTC inspection.
(See DTC Table.)
|
|
No
|
Inspect the instrument cluster
If the instrument cluster is normal, go to the next step.
If the instrument cluster has a malfunction, repair the instrument cluster, go to the next step.
|
||
|
3
|
INSPECT WIRING HARNESS BETWEEN ABS HU/CM AND DLC-2 FOR CONTINUITY

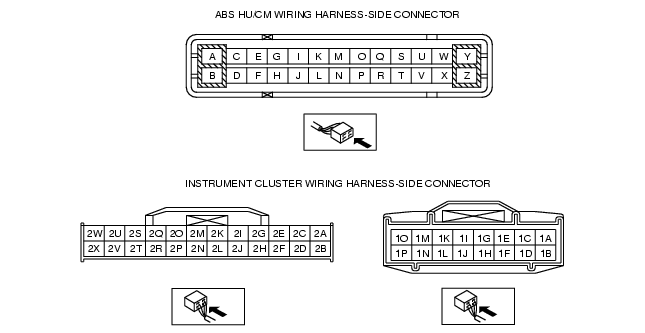

• Disconnect the ABS HU/CM connector.
• Is there continuity between connector terminal H, L and DLC-2?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the wiring harness between the ABS HU/CM and DLC-2.
|
||
|
*4 |
INSPECT WIRING HARNESS BETWEEN ABS HU/CM AND DLC-2 FOR SHORT TO POWER SUPPLY
• Is the voltage approx. 12 V at connector terminal H, L?
|
Yes
|
Repair the wiring harness between the ABS HU/CM and DLC-2.
|
|
No
|
Go to the next step.
|
||
|
5
|
INSPECT WIRING HARNESS BETWEEN ABS HU/CM AND DLC-2 FOR SHORT TO GROUND
Is there continuity between connector terminal H, L and ground?
|
Yes
|
Repair the wiring harness between the ABS HU/CM and DLC-2.
|
|
No
|
Replace the ABS CM (communication circuit malfunction in ABS CM).
|
||
|
|
|||
