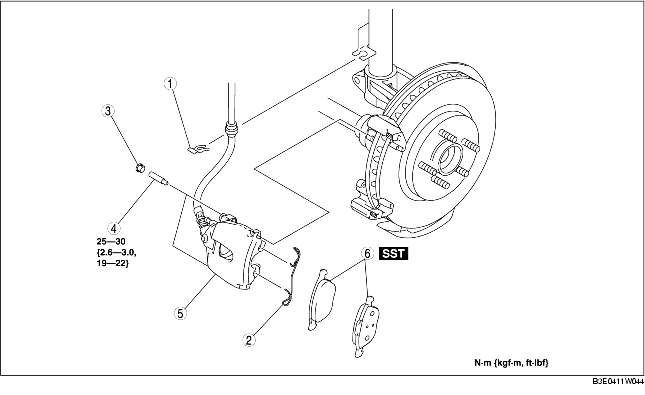

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, pump the brake pedal a few times and verify that the brakes do not drag.
.
1
|
Clip
|
2
|
Retaining clip
|
3
|
Cap
|
4
|
Bolt
|
5
|
Caliper
|
6
|
Disc pad
(See Disc Pad Installation Note.)
|
