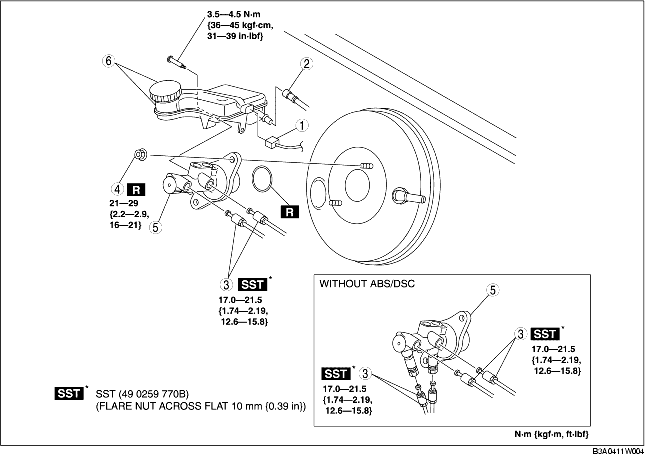

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
.
|
1
|
Brake fluid level sensor connector
|
|
2
|
Reserve hose (MTX)
(See Reserve Hose Removal Note.)
|
|
3
|
Brake pipe
|
|
4
|
Nut
|
|
5
|
Master cylinder
|
|
6
|
Reserve tank, cap
|
