FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041300800700

1. Remove the mudguard.

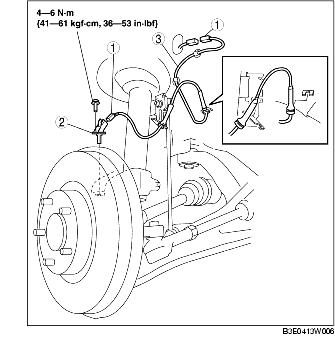

2. Remove in the order indicated in the table.


1	Connector
2	Front ABS wheel-speed sensor
3	Front ABS wheel-speed sensor wiring harness

3. Install in the reverse order of removal.
