REAR ABS WHEEL-SPEED SENSOR INSPECTION

Installation Visual Inspection

1. Inspect for the following:

• If there is any malfunction, replace the part.

(1) Excessive looseness or play of the ABS wheel-speed sensor

(2) Deformation of the ABS wheel-speed sensor

(3) Deformation or damage of the ABS sensor rotor

Clearance Inspection

1. Remove the rear ABS wheel-speed sensor.

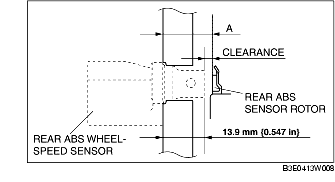

2. Measure the distance between the rear ABS wheel-speed sensor installation surface and the ABS sensor rotor. This is dimension A.

3. Calculate the clearance between the rear ABS wheel-speed sensor and the ABS sensor rotor using the following formula:

Clearance (mm {in}) = A -13.9 {0.547}

4. Verify that the clearance between the ABS sensor rotor and the rear ABS wheel-speed sensor is as indicated below.

• If there is any malfunction, replace it.

Clearance

1.46 mm {0.057 in} or less

Sensor Output Value Inspection

Caution

• Resistance inspection using other testers may cause damage to the ABS wheel-speed sensor internal circuit. Be sure to use the WDS or equivalent to inspect the ABS wheel-speed sensor.

1. Turn the ignition switch off.

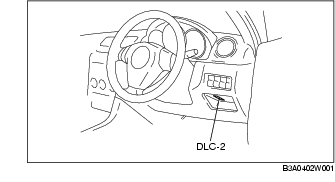

2. Connect the WDS or equivalent to the DLC-2.

3. Select the following PIDs using the WDS or equivalent:

• LR_WSPD

(LR wheel-speed sensor)

• RR_WSPD

(RR wheel-speed sensor)

4. Start the engine and drive the vehicle.

5. Verify that the display of the WDS or equivalent shows the same value as the speedometer.

• If there is any malfunction, replace the ABS wheel-speed sensor.
