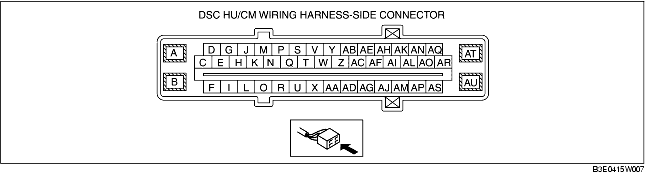

Terminal
|
Signal name
|
Connected to
|
Measured item
|
Measured terminal (measurement condition)
|
Standard
|
Inspection item(s)
|
|
A
|
Ground (system)
|
Ground point
|
Continuity
|
A-ground point
|
Continuity detected
|
• Wiring harness
(A-ground point)
|
|
B
|
Ground
(ABS motor)
|
Ground point
|
Continuity
|
B-ground point
|
Continuity detected
|
• Wiring harness
(B-ground point)
|
|
C
|
-
|
-
|
-
|
-
|
-
|
-
|
|
D
|
CAN_L
|
DLC-2
(CAN_L)
|
Continuity
|
D-DLC-2 terminal CAN_L
|
Continuity detected
|
• D-DLC-2 terminal CAN_L
|
|
E
|
-
|
-
|
-
|
-
|
-
|
-
|
|
F
|
LF wheel-speed sensor (ground)
|
LF ABS wheel-speed sensor
|
Continuity
|
F-LF ABS wheel-speed sensor terminal A
|
Continuity detected
|
• Wiring harness (F-LF ABS wheel-speed sensor terminal A)
|
|
G
|
-
|
-
|
-
|
-
|
-
|
-
|
|
H
|
CAN2_H
|
Combined sensor
|
Continuity
|
H-combined sensor terminal B
|
Continuity detected
|
• Wiring harness (H-combined sensor terminal B)
|
|
I
|
LF wheel-speed sensor (single)
|
LF ABS wheel-speed sensor
|
Continuity
|
I-LF ABS wheel-speed sensor terminal A
|
Continuity detected
|
• Wiring harness (I-LF ABS wheel-speed sensor terminal A)
|
|
J
|
-
|
-
|
-
|
-
|
-
|
-
|
|
K
|
-
|
-
|
-
|
-
|
-
|
-
|
|
L
|
-
|
-
|
-
|
-
|
-
|
-
|
|
M
|
-
|
-
|
-
|
-
|
-
|
-
|
|
N
|
-
|
-
|
-
|
-
|
-
|
-
|
|
O
|
RR wheel-speed (signal)
|
RR ABS wheel-speed sensor
|
Continuity
|
O-RR ABS wheel-speed sensor terminal A
|
Continuity detected
|
• Wiring harness (O-RR ABS wheel-speed sensor terminal A)
|
|
P
|
CAN_H
|
DLC-2
(CAN_H)
|
Continuity
|
P-DLC-2 terminal CAN_H
|
Continuity detected
|
• Wiring harness (P-DLC-2 terminal CAN_H)
|
|
Q
|
-
|
-
|
-
|
-
|
-
|
-
|
|
R
|
RR wheel-speed (ground)
|
RR ABS wheel-speed sensor
|
Continuity
|
R-RR ABS wheel-speed sensor terminal B
|
Continuity detected
|
• Wiring harness (R-RR ABS wheel-speed sensor terminal B)
|
|
S
|
-
|
-
|
-
|
-
|
-
|
-
|
|
T
|
CAN2_L
|
Combined sensor
|
Continuity
|
T-combined sensor terminal A
|
Continuity detected
|
• Wiring harness (T-combined sensor terminal A)
|
|
U
|
-
|
-
|
-
|
-
|
-
|
-
|
|
V
|
-
|
-
|
-
|
-
|
-
|
-
|
|
W
|
-
|
-
|
-
|
-
|
-
|
-
|
|
X
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Y
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Z
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AA
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AB
|
Sensor power supply
|
Combined sensor, steering angle sensor
|
Continuity
|
AB-combined sensor terminal D
AB-steering angle sensor terminal A
|
Continuity detected
|
• Wiring harness (AB-combined sensor terminal D)
• Wiring harness (AB-steering angle sensor terminal A)
|
|
AC
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AD
|
DSC OFF switch
|
DSC OFF switch
|
Continuity
|
AD-DSC OFF switch
|
Continuity detected
|
• Wiring harness (AD-DSC OFF switch)
|
|
AE
|
Steering angle sensor (signal B)
|
Steering angle sensor
|
Continuity
|
AE-steering angle sensor terminal C
|
Continuity detected
|
• Wiring harness (AE-steering angle sensor terminal C)
|
|
AF
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AG
|
LR wheel-speed (ground)
|
LR ABS wheel-speed sensor
|
Continuity
|
AG-LR ABS wheel-speed sensor terminal B
|
Continuity detected
|
• Wiring harness (AG-LR ABS wheel-speed sensor terminal B)
|
|
AH
|
Sensor ground
|
Combined sensor, steering angle sensor
|
Continuity
|
AH-combined sensor terminal E
AH-steering angle sensor terminal D
|
Continuity detected
|
• Wiring harness (AH-combined sensor terminal E)
• Wiring harness (AH-steering angle sensor terminal D)
|
|
AI
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AJ
|
LR wheel-speed (signal)
|
LR ABS wheel-speed sensor
|
Continuity
|
AJ-LR ABS wheel-speed sensor terminal A
|
Continuity detected
|
• Wiring harness (AJ-LR ABS wheel-speed sensor terminal A)
|
|
AK
|
Power supply (system)
|
Ignition switch
|
Voltage
|
The ignition switch is at the ON position.
|
B+
|
• Wiring harness (AK-ignition switch)
|
|
The ignition switch is off.
|
1 V or less
|
-
|
|
AL
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AM
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AN
|
Steering angle sensor (signal A)
|
Steering angle sensor
|
Continuity
|
AN-steering angle sensor terminal B
|
Continuity detected
|
• Wiring harness (AN-steering angle sensor terminal B)
|
|
AO
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AP
|
RF wheel-speed (signal)
|
RF ABS wheel-speed sensor
|
Continuity
|
AP-RF ABS wheel-speed sensor terminal A
|
Continuity detected
|
• Wiring harness (AP-RF ABS wheel-speed sensor terminal A)
|
|
AQ
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AR
|
-
|
-
|
-
|
-
|
-
|
-
|
|
AS
|
RF wheel-speed (ground)
|
RF ABS wheel-speed sensor
|
Continuity
|
AS-RF ABS wheel-speed sensor terminal B
|
Continuity detected
|
• Wiring harness (AS-RF ABS wheel-speed sensor terminal B)
|
|
AT
|
Power supply
(ABS motor operation)
|
Battery
|
Voltage
|
Under any condition
|
B+
|
• Wiring harness
(AT-battery)
|
|
AU
|
Power supply
(solenoid operation)
|
Battery
|
Voltage
|
Under any condition
|
B+
|
• Wiring harness
(AU-battery)
|
