CLUTCH COVER INSPECTION


id051000800800

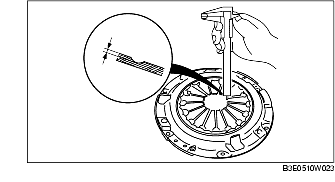

1. Measure the wear of the diaphragm spring fingers.

• If it exceeds the maximum specification, replace the clutch cover.
Maximum depth
0.6 mm {0.024 in}

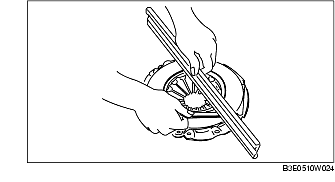

2. Measure the flatness of the pressure plate with a straight edge and a feeler gauge.

• If it exceeds the maximum specification, replace the clutch cover.
Maximum clearance
0.5 mm {0.020 in}

3. When checking the diaphragm spring fingers, mount a dial indicator on the cylinder block.

4. Rotate the flywheel and check for misaligned diaphragm spring fingers.

• If it exceeds the maximum specification, replace the clutch cover.
Maximum height difference
1.0 mm {0.039 in}
