NEUTRAL SWITCH REMOVAL/INSTALLATION [F35M-R]


id051505800700

1. Remove the under cover.

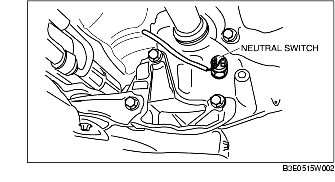

2. Remove the neutral switch.

3. Install the neutral switch (with a new packing) to the transmission case.

Tightening torque
19.6-29.4 N·m
{2.0-2.9 kgf·m, 14.5-21.6 ft·lbf}
