CONTROL ROD CONSTRUCTION/OPERATION [G35M-R]


id0515b1100100

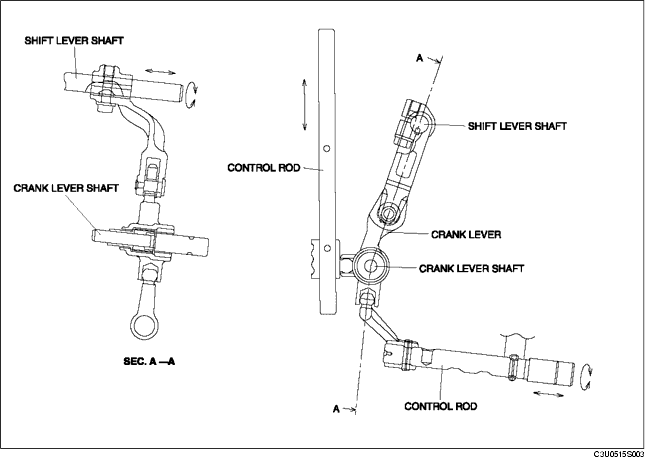

• Movement of the shift lever when operated is transmitted as follows, resulting in gear shifting: cable→shift lever shaft→crank lever→control rod.
