TRANSAXLE OIL INSPECTION [G35M-R]

1. Park the vehicle on level ground.

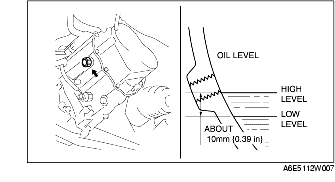

2. Remove the oil level plug and washer.

3. Verify that the oil is near the brim of the plug port.

• If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.

Specified oil grade

API Service GL-4 or GL-5

Specified oil viscosity

All-season: SAE 75W-90

Above 10 °C {50 °F}: SAE 80W-90

4. Install a new washer and the oil level plug.

Tightening torque

40-58 N·m {4.0-6.0 kgf·m, 29-43 ft·lbf}
