SELECTOR LEVER STRUCTURE

M Range Switch

Outline

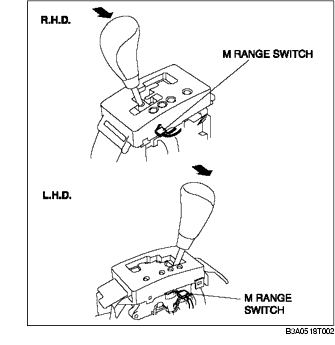

• The M range switch detects the selector lever in M range position and sends a manual mode request signal to the PCM.

Operation

• The M range switch is an on/off type switch that turns on when the selector lever is shifted to the M range. It also remains on during up-shift and down-shift operations.

Up Switch

Outline

• The up switch detects an up-shift operation in the M range and sends an up-shift request signal to the PCM.

Operation

• The up switch is an on/off type switch that turns on when the selector lever is in the M range (+) side position.

Down Switch

Outline

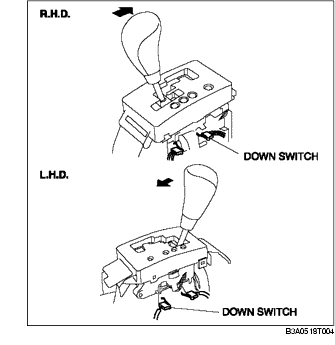

• The down switch detects a down-shift operation in the M range and sends a down-shift request signal to the PCM.

Operation

• The down switch is an on/off type switch that turns on when the selector lever is in the M range (-) side position.

P Position Switch

Outline

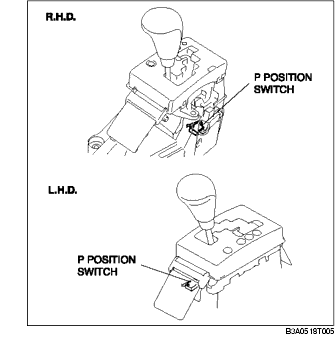

• The P position switch detects whether or not the selector lever is in P position. When detected, sends a P position signal to the shift-lock relay and, when detected, sends a "Not P position" signal to the key interlock solenoid.

Operation

• The P position switch is an on/off type switch whose P position side turns on when the selector lever is in the P position and the "Not P position" side turns on when the selector lever is any position besides the P position.
