EMERGENCY OVERRIDE BUTTON INSPECTION

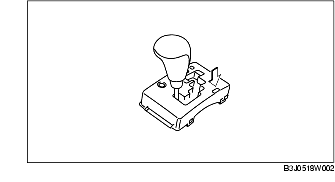

id051800802100

1. Turn the ignition switch to the LOCK position.

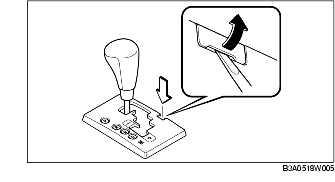

2. Verify that the selector lever is in the P position.

3. Without the brake pedal depressed, verify that the selector lever cannot be shifted from the P position.

4. Remove the panel cover using a screwdriver as shown in the figure. (L.H.D.)

5. Insert the screwdriver into the emergency override hole and push it down. Verify that the selector lever can be shifted from the P position.

• If there is any malfunction, replace the selector lever component. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
