SHIFT-LOCK SOLENOID INSPECTION

id051800802200

1. Disconnect the negative battery cable.

2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

3. Disconnect the selector lever component connector.

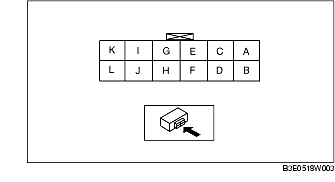

4. Measure the continuity between terminals E and F.

• If there is any malfunction, replace the selector lever component. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
