DLC-2 CONSTRUCTION

id060200100100

• A connector (DLC-2) conforming to International Organization for Standardization (ISO) standards has been added.

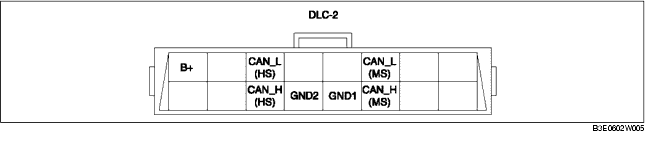

• Shape and terminal arrangement as stipulated by the ISO 15031-3 (SAE J1962) international standard has been adopted for this connector. The connector has a 16-pin construction that includes the CAN_H (HS), CAN_L (HS), CAN_H (MS), CAN_L (MS), GND1, GND2 and B+ terminals.

Terminal

Function

CAN_L (HS)
Serial communication Lo terminal (HS)
CAN_H (HS)
Serial communication Hi terminal (HS)
CAN_L (MS)
Serial communication Lo terminal (MS)
CAN_H (MS)
Serial communication Hi terminal (MS)
GND1
Body GND terminal
GND2
Serial communication GND terminal
B+
Battery power supply terminal
