ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) SYSTEM WIRING DIAGRAM

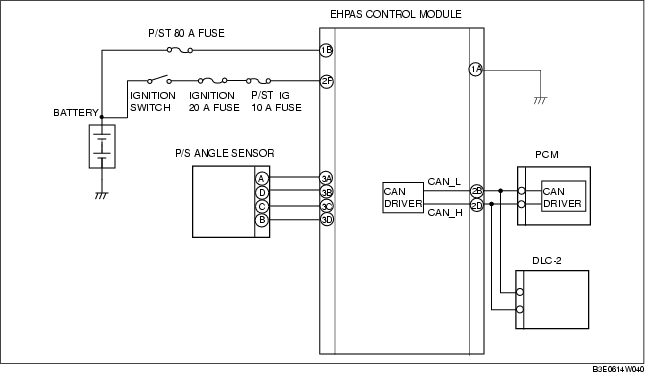

With P/S angle sensor [Applied VIN (assumed): JM0 BK10*100 100001-150353, JM6 BK10*100 100001-150353, JM7 BK**6**# 100001-150353]

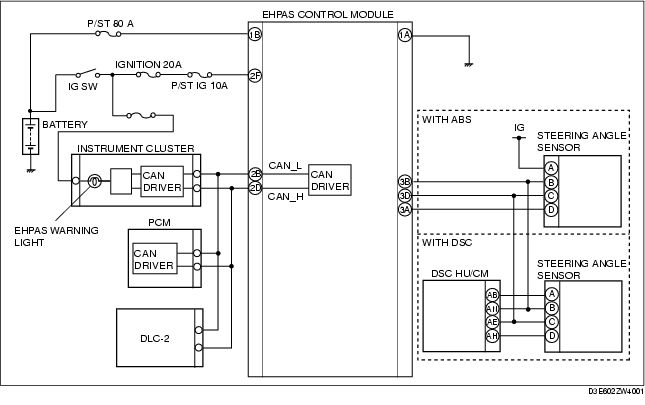

Without P/S angle sensor [Applied VIN (assumed): JM0 BK10*100 150354-, JM6 BK10*100 150354-, JM7 BK**6**# 150354-]
