Terminal
|
Signal name
|
Connected to
|
Measured item
|
Measured terminal (measured condition)
|
Standard
|
Inspection item(s)
|
|
1A
|
Ground
|
Ground point
|
Voltage
|
Under any condition
|
1 V or less
|
• Wiring harness (1A-ground point)
|
|
1B
|
Battery power supply
|
Battery
|
Voltage
|
Under any condition
|
B+
|
• Wiring harness (1B-battery)
• Fuse (P/ST 80 A)
|
|
2A
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2B
|
CAN_L
|
-
|
Inspect under DTC inspection.
|
-
|
|
2C
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2D
|
CAN_H
|
-
|
Inspect under DTC inspection.
|
-
|
|
2E
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2F
|
Ignition power supply
|
Ignition switch
|
Voltage
|
Ignition switch is ON
|
B+
|
• Wiring harness (2F-ignition switch-battery)
• Fuse (IGNITION 20 A, P/ST IG 15 A)
|
|
Ignition switch is OFF
|
1 V or less
|
|

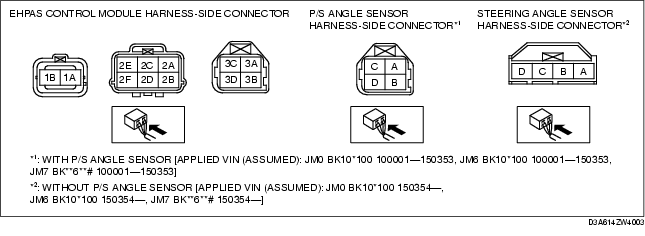

3A*1
|
P/S angle sensor ground
|
P/S angle sensor
|
Continuity
|
Continuity
|
Continuity detected
|
• Wiring harness (3A-P/S angle sensor A)
|
|
3A*2, *3
|
Steering angle sensor ground
|
Steering angle sensor
|
Continuity
|
Continuity
|
Continuity detected
|
• Wiring harness (3A-steering angle sensor D)
|
|
3B*1
|
P/S angle sensor
(signal 1)
|
P/S angle sensor
|
Continuity
|
Continuity
|
Continuity detected
|
• Wiring harness (3B-P/S angle sensor D)
|
|
3B*2
|
Steering angle sensor
(signal 1)
|
Steering angle sensor
|
Continuity
|
Continuity
|
Continuity detected
|
• Wiring harness (3B-steering angle sensor B)
|
|
3C*1
|
P/S angle sensor power supply
|
P/S angle sensor
|
Voltage
|
Ignition switch is ON
|
4.6-5.4 V
|
• Wiring harness (3C-P/S angle sensor C)
|
|
3D*1
|
P/S angle sensor
(signal 2)
|
P/S angle sensor
|
Continuity
|
Continuity
|
Continuity detected
|
• Wiring harness (3D-P/S angle sensor B)
|
|
3D*2
|
Steering angle sensor
(signal 2)
|
Steering angle sensor
|
Continuity
|
Continuity
|
Continuity detected
|
• Wiring harness (3D-steering angle sensor C)
|
