ELECTRIC POWER STEERING OIL PUMP REMOVAL/INSTALLATION [ZY, LF, L3]

id0614008032a8

1.  Remove the under cover, splash shield (RH) and mudguard (RH).

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

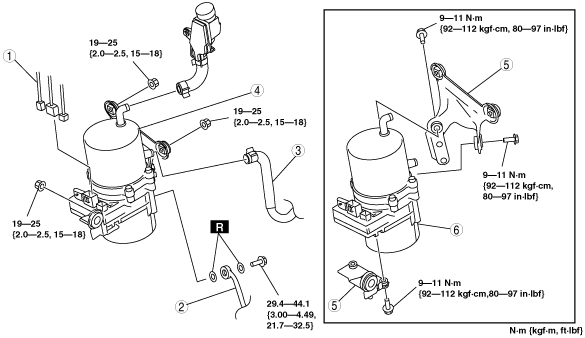

am3zzw00009237

1	Connector
2	Pressure pipe
3	Suction hose
4	Electric power steering oil pump and bracket component
5	Bracket
6	Electric power steering oil pump
