DLC-2 CONSTRUCTION

id070200100400

Features

Outline

• A connector (DLC-2) conforming to International Organization for Standardization (ISO) standards has been added.

• Communication using the DLC-1 FEN terminal has been eliminated. Due to this, DTCs cannot be read out using a disc monitor or circuit tester.

DLC-2

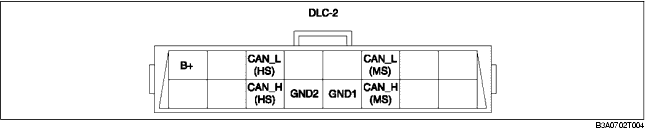

• Shape and terminal arrangement as stipulated by the ISO international standard has been adopted for this connector. The connector has a 16-pin construction that includes the CAN_H (HS), CAN_L (HS), CAN_H (MS), CAN_L (MS), GND1, GND2 and B+ terminals.


Terminal	Function
CAN_L (HS)	Serial communication LO terminal (HS)
CAN_H (HS)	Serial communication HI terminal (HS)
CAN_L (MS)	Serial communication LO terminal (MS)
CAN_H (MS)	Serial communication HI terminal (MS)
GND1	Body GND terminal
GND2	Serial communication GND terminal
B+	Battery power supply terminal
