STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
• Inspect the solar radiation sensor. (See SOLAR RADIATION SENSOR INSPECTION.)
• Is it normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the solar radiation sensor. (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.)
|
||
|
2
|
• Disconnect the climate control unit connector and the solar radiation sensor connector.

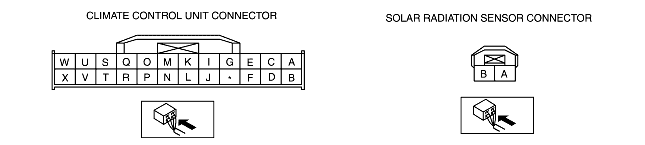

• Is there continuity between the following terminals of the climate control unit and the solar radiation sensor?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the wiring harness.
|
||
|
3
|
• Is there a short circuit to ground in the wiring harness between climate control unit terminal S and solar radiation sensor terminal B?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Inspect the connection of the climate control unit connector. (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
|
||
|
|
|||
