STEP
|
INSPECTION
|
ACTION
|
|
1
|

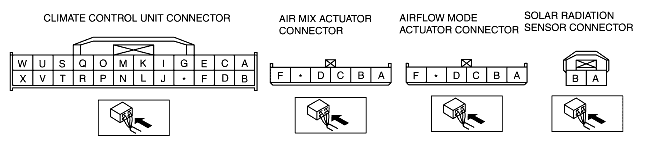

• Disconnect the climate control unit connector and the airflow mode actuator connector.
• Is there an open circuit in the wiring harness between climate control unit terminal P and airflow mode actuator terminal B?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Go to the next step.
|
|
2
|
• Is there a short circuit to ground in the wiring harness between climate control unit terminal P and airflow mode actuator terminal B?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Go to the next step.
|
|
3
|
• Is there a short circuit to ground in the wiring harness between climate control unit terminal P and air mix actuator terminal A?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Go to the next step.
|
|
4
|
• Is there a short circuit to ground in the wiring harness between climate control unit terminal P and solar radiation sensor terminal A?
|
Yes
|
Repair the wiring harness.
|
|
No
|
The system is normal at present. (Clear the past malfunction from the memory.)
|
|
|
