AIR FILTER REMOVAL/INSTALLATION


id071100800700

1. Disconnect the negative battery cable.

2. Remove the PJB and PJB bracket. (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION.)

3. Remove the side wall.

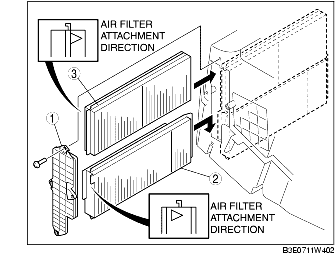

4. Remove in the order indicated in the table.

1
Air filter cover
2
Air filter (1)
3
Air filter (2)

5. Install in the reverse order of removal.
