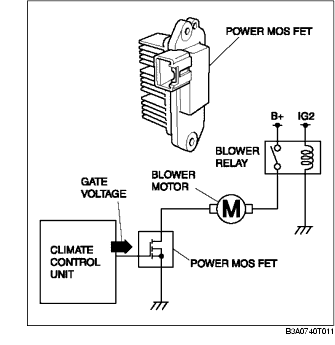

• Controls the supply voltage to the blower motor according to the gate voltage sent from the climate control unit and adjusts the rotation speed (airflow volume).

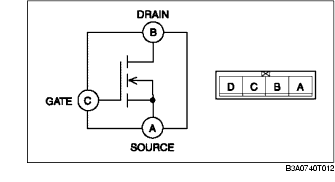

• There are three electrodes: source, gate, and drain electrodes.

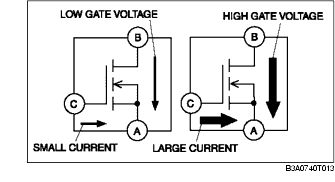

• The resistance between terminals B and A (between drain and source) changes according to the voltage (gate voltage) applied to terminal C (gate).
• When the gate voltage increases, the resistance between terminals B and A decreases, allowing the current to flow easily.
