MAGNETIC CLUTCH INSPECTION [LF, L3]

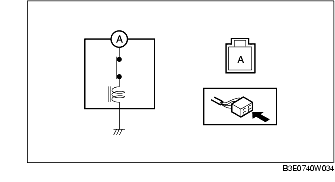

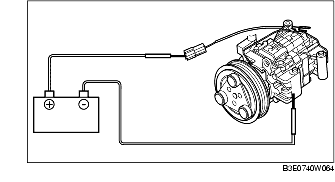

1. Connect battery positive voltage to magnetic clutch terminal A and the A/C compressor body to ground.

2. Verify that the magnetic clutch operates.

• If there is any malfunction, replace the stator and thermal protector.
