RESISTOR INSPECTION
id074000800800

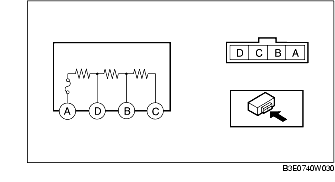

1. Verify that the resistance between the resistor terminals is as shown in the table.
• If there is any malfunction, replace the resistor.
Terminal
Resistance (ohm)
A-D
0.27-0.30
A-B
0.77-0.87
A-C
3.05-3.49
