FAN SWITCH INSPECTION


id074000801300

1. Remove the climate control unit.

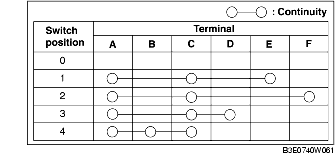

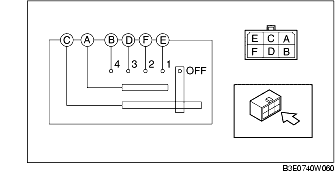

2. Verify that the continuity between the fan switch terminals is as indicated in the table.

• If there is any malfunction, replace the fan switch.
