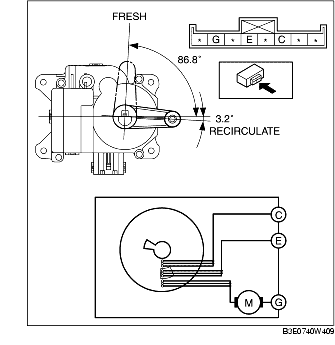

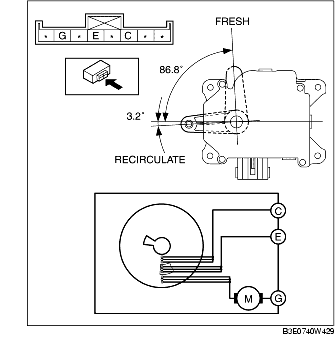

1. Connect battery positive voltage to air intake actuator terminal C (or G), connect terminal G (or E) to ground, and then verify that the air intake actuator operates as shown in the table.
L.H.D.
R.H.D.
|
Terminal
|
Air intake actuator operation
|
||
|---|---|---|---|
|
C
|
E
|
G
|
|
|
B+
|
-
|
Ground
|
FRESH→RECIRCULATE
|
|
-
|
Ground
|
B+
|
RECIRCULATE→FRESH
|
