AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION


id074000801600

1. Disconnect the negative battery cable.

2. Remove the airflow mode rod from the airflow mode actuator.

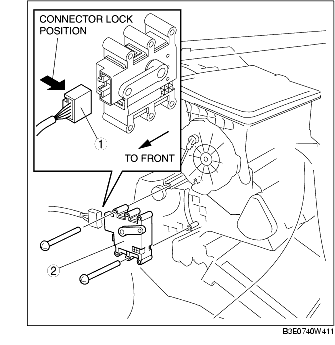

3. Remove in the order indicated in the table.

1
Airflow mode actuator connector
2
Airflow mode actuator

4. Install in the reverse order of removal.
