CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER]

id0740008020a1

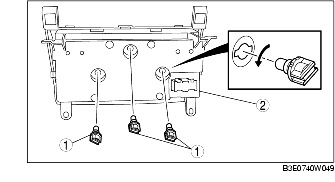

1. Disassemble in the order indicated in the table.


1	Bulb
2	Body

2. Assemble in the reverse order of disassembly.
