REFRIGERANT PRESSURE SWITCH INSPECTION

1. Install the SST (gas charging set).

2. Disconnect the refrigerant pressure switch connector.

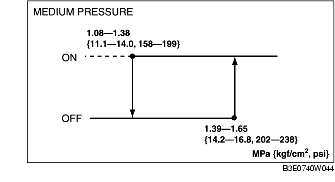

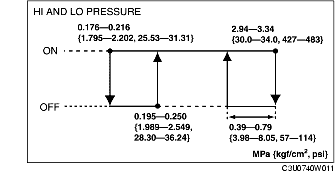

3. Verify the high-pressure side reading of the SST (manifold gauge) and continuity between the refrigerant pressure switch terminals.

• If there is any malfunction, replace the refrigerant pressure switch.
