1.• Disconnect the negative battery cable.
2. Remove the ashtray panel. (See CONSOLE REMOVAL/INSTALLATION.)
3. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)
4. Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION.)

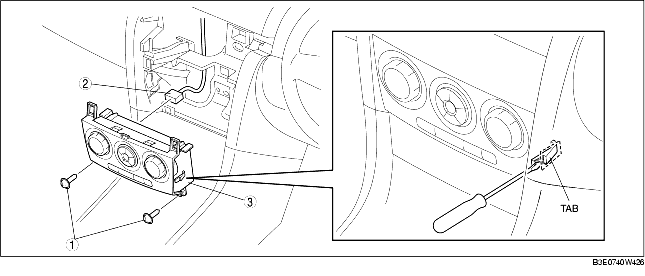

5. Release the left and right tabs and remove as shown in the figure.
