CABIN TEMPERATURE SENSOR INSPECTION

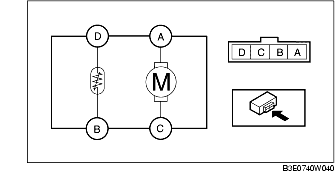

1. Measure the temperature around the cabin temperature sensor and measure the resistance between cabin temperature sensor terminals B and D.

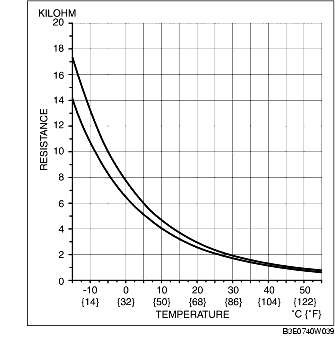

• If the characteristics of the cabin temperature sensor are not as shown in the graph, replace the cabin temperature sensor.

2. Connect battery positive voltage to cabin temperature sensor terminal A and connect terminal C to ground to verify fan operation.

• If there is any malfunction, replace the cabin temperature sensor.
