POWER MOS FET INSPECTION

id074000831000

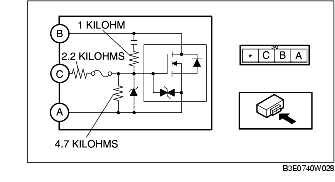

1. Verify that the continuity between the power MOS FET terminals is as indicated in the table.

• If there is any malfunction, replace the power MOS FET.
• If the blower motor operation is not normal even though no malfunction can be verified, inspect the climate control unit. (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)

Tester lead

Resistance (kilohm)

+

-

A
B
∞
A
C
6.9
B
A
Continuity detected
B
C
Continuity detected
C
A
6.9
C
B
∞
