Diagnostic procedure
STEP
|
INSPECTION
|
ACTION
|
|
---|---|---|---|
1
|
INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR CONNECTOR
• Turn the ignition switch to the LOCK position.
• Disconnect the negative battery cable and wait for 1 min or more.
• Disconnect the driver-side side air bag sensor connector.
• Is there any malfunction of the driver-side side air bag sensor connector?
|
Yes
|
Replace the air bag wiring harness.
|
No
|
Go to the next step.
|
||
2
|
INSPECT WIRING HARNESS BETWEEN DRIVER-SIDE SIDE AIR BAG SENSOR AND SAS CONTROL MODULE
• Turn the ignition switch to the LOCK position.
• Disconnect the negative battery cable and wait for 1 min or more.
• Disconnect the driver and passenger-side front seat connectors.
• Disconnect the driver and passenger-side curtain air bag module connectors.
• Remove the console.
• Disconnect the SAS control module connector.
• Disconnect the driver-side side air bag sensor connector.
• Connect the negative battery cable.

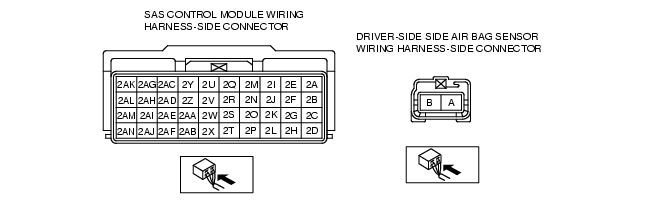

• Inspect the wiring harnesses between SAS control module terminal 2O and driver-side side air bag sensor terminal A, SAS control module terminal 2S and driver-side side air bag sensor terminal B for the following:
• Is the wiring harness normal?
|
Yes
|
Replace the driver-side side air bag sensor, then go to the next step.
|
No
|
Replace the air bag wiring harness.
|
||
3
|
INSPECT SAS CONTROL MODULE
• Turn the ignition switch to the LOCK position.
• Disconnect the negative battery cable and wait for 1 min or more.
• Connect the SAS control module connector.
• Connect the driver-side side air bag sensor connector.
• Are DTCs B104B, B104E, B1051 and/or U2017 indicated?
|
Yes
|
Replace the SAS control module.
|
No
|
DTC troubleshooting completed.
|
