SAS CONTROL MODULE CONFIGURATION


id081000801500

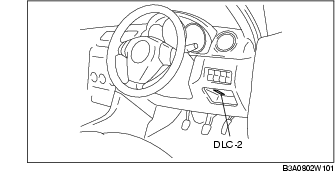

1. Connect the WDS or equivalent to the DLC-2 (16-pin).

2. Select "Module programming" from the menu.

3. Select "Programmable Module Installation".

4. Select the following items and perform procedure according to the directions on the WDS or equivalent screen.

Item
"RCM"
