STEP
|
INSPECTION
|
ACTION
|
|
1
|
INSPECT TRANSMITTER BATTERY INSTALLATION AND TYPE
• Visually inspect the transmitter battery.
• Are the below items correct?
-
- Transmitter battery installation (correct polarity)
-
- Battery type (CR2025)
|
Yes
|
Go to the next step.
|
|
No
|
Install the transmitter battery properly or replace with the specified transmitter battery (CR2025), then go to Step 11.
|
|
2
|
INSPECT TRANSMITTER BATTERY TERMINALS FOR RUST AND POOR CONNECTION
• Visually inspect the transmitter.
-
- Is there rust on the transmitter battery terminals (positive or negative)?
-
- Is there poor connection between the terminals and battery?
|
Yes
|
Replace the transmitter battery or repair the transmitter battery terminal, then go to Step 11.
|
|
No
|
Go to the next step.
|
|
3
|
INSPECT TRANSMITTER BATTERY
• Inspect the transmitter battery.
• Is the battery voltage normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the transmitter battery, then go to Step 11.
|
|
4
|
INSPECT IF MALFUNCTION IS IN TRANSMITTER BATTERY OR ELSEWHERE
• Replace with a transmitter battery known to be good.
• Does the keyless entry system operate properly?
|
Yes
|
Replace the transmitter battery, then go to Step 11.
|
|
No
|
Go to the next step.
|
|
5
|
INSPECT IF MALFUNCTION IS IN TRANSMITTER OR PJB
• Reprogram the transmitter ID code using another known good transmitter.
• Does the keyless entry system operate properly?
|
Yes
|
Replace the transmitter and reprogram the transmitter ID code, then go to Step 11.
|
|
No
|
Go to the next step.
|
|
6
|
INSPECT POWER SUPPLY FUSE
• Is the keyless control module power supply fuse normal?
|
Yes
|
Go to the next step.
|
|
No
|
Install an appropriate amperage fuse, then go to Step 11.
|
|
7
|
INSPECT IF MALFUNCTION IS IN WIRING HARNESS (NO CONTINUITY BETWEEN FUSE BLOCK AND KEYLESS CONTROL MODULE) OR ELSEWHERE

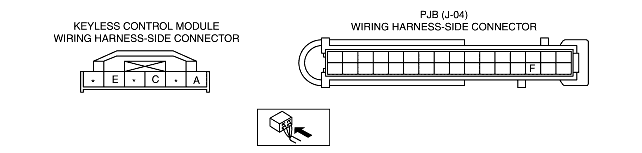

• Measure the voltage at the following keyless control module terminal:
-
- Power supply signal (terminal A)
• Is the voltage B+?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the wiring harness between the fuse block and keyless control module, then go to Step 11.
|
|
8
|
INSPECT IF MALFUNCTION IS IN WIRING HARNESS (NO CONTINUITY BETWEEN KEYLESS CONTROL MODULE AND GROUND) OR ELSEWHERE
• Is there continuity between keyless control module terminal E and ground?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the wiring harness between the keyless control module and ground, then go to Step 11.
|
|
9
|
INSPECT IF MALFUNCTION IS IN WIRING HARNESS (NO CONTINUITY BETWEEN KEYLESS CONTROL MODULE AND PJB) OR ELSEWHERE
• Disconnect the keyless control module connector and PJB connector.
• Is there continuity between the following terminals?
-
- J-04-F (PJB connector)-C (keyless control module connector)
|
Yes
|
Go to the next step.
|
|
No
|
Repair the wiring harness between the keyless control module and PJB, then go to Step 11.
|
|
10
|
INSPECT IF MALFUNCTION IS IN WIRING HARNESS (NO CONTINUITY BETWEEN KEYLESS CONTROL MODULE AND PJB) OR PJB
• Measure the voltage at PJB terminal C.
-
- When transmitter operated:
-
• Any transmitter button is operated without key in steering lock (key reminder switch off): 5 V
-
• Key is in steering lock (key reminder switch on): Below 0.5 V
• Is the voltage normal?
|
Yes
|
Replace the PJB, then go to the next step.
|
|
No
|
Replace the keyless control module, then go to the next step.
|
|
11
|
REINSPECT MALFUNCTION SYMPTOM AFTER REPAIR
• Does the keyless entry system operate properly?
|
Yes
|
Troubleshooting completed.
Explain repairs to the customer.
|
|
No
|
Reinspect the malfunction symptoms, then repeat from Step 1 if the malfunction recurs.
|
