1. Remove the front fog light. (Vehicles with the front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)
2. Remove the radiator grille. (4SD) (See RADIATOR GRILLE REMOVAL/INSTALLATION.)
3. Disassemble in the order indicated in the table.

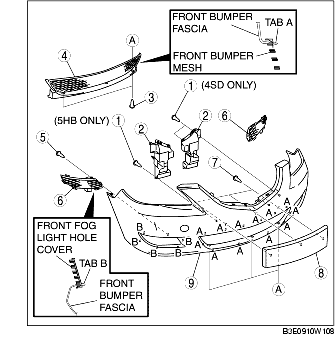

Standard Type
|
1
|
Screw A
|
|
2
|
Set plate
|
|
3
|
Screw B
|
|
4
|
Front bumper mesh
|
|
5
|
Screw C (4SD)
|
|
6
|
Front fog light hole cover (vehicles without the front fog lights)
|
|
7
|
Bolt
|
|
8
|
License plate holder
|
|
9
|
Front bumper fascia
|

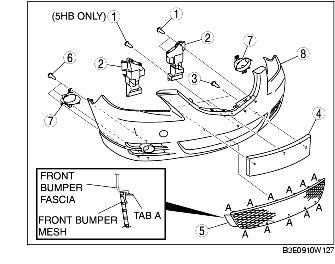

Sports Type
|
1
|
Screw A
|
|
2
|
Set plate
|
|
3
|
Bolt
|
|
4
|
License plate holder
|
|
5
|
Front bumper mesh
|
|
6
|
Screw B
|
|
7
|
Front fog light cover (4SD) (vehicles with the front fog lights)
|
|
8
|
Front bumper fascia
|
4. Assemble in the reverse order of disassembly.
