COWL PANEL REMOVAL/INSTALLATION


id091000406200

1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

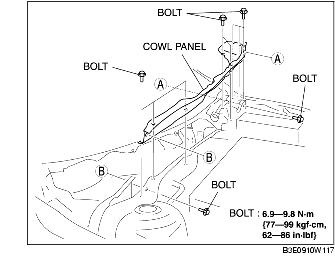

3. Remove the bolts, then remove the cowl panel.

4. Install in the reverse order of removal.
