TRUNK LID ADJUSTMENT
id091000801700

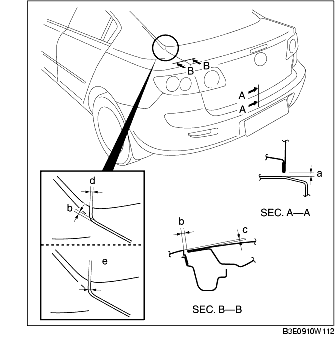

1. Measure the gap and height difference between the trunk lid and the body.
-
Standard clearance
-
a: 4.0-8.0 mm {0.16-0.31 in}
-
b: 2.5-4.5 mm {0.10-0.17 in}
-
c: -0.5-1.5 mm {-0.019-0.059 in}
-
d: 3.3-5.3 mm {0.13-0.20 in}
-
d: 2.5-4.5 mm {0.10-0.17 in}
2. Loosen the trunk lid hinge installation bolts or nuts and adjust the trunk lid.
-
• If necessary, loosen the trunk lid lock striker installation bolts and adjust the trunk lid. (See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION.)
3. Tighten the bolts or nuts.
