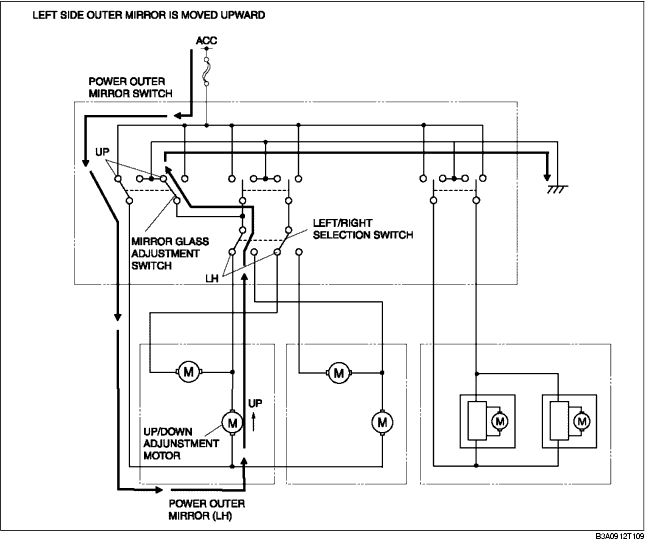

• The left/right selection switch establishes left or right side outer mirror circuit and current is supplied in either one of the four directions according to the position of the mirror glass adjustment switch. Due to this, the motor rotates either up or down, left or right.

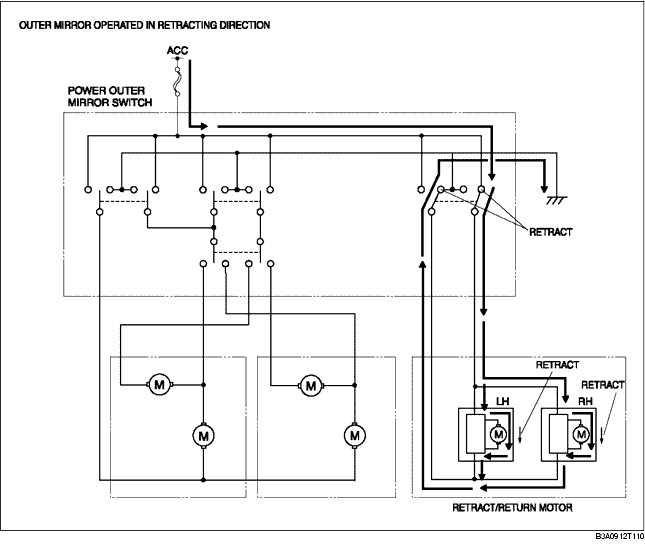

• When the retractable mirror switch is moved to the retract position, a circuit is established, and the retract/return motor rotates in the retracting direction.
• During return operation, the motor rotates in the opposite (returning) direction.
